Ricoh GEN4 MH2420 Printhead for Industrial Printers

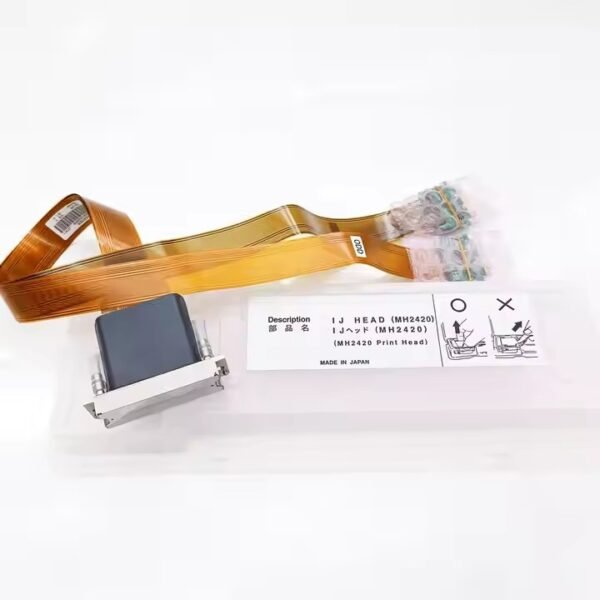

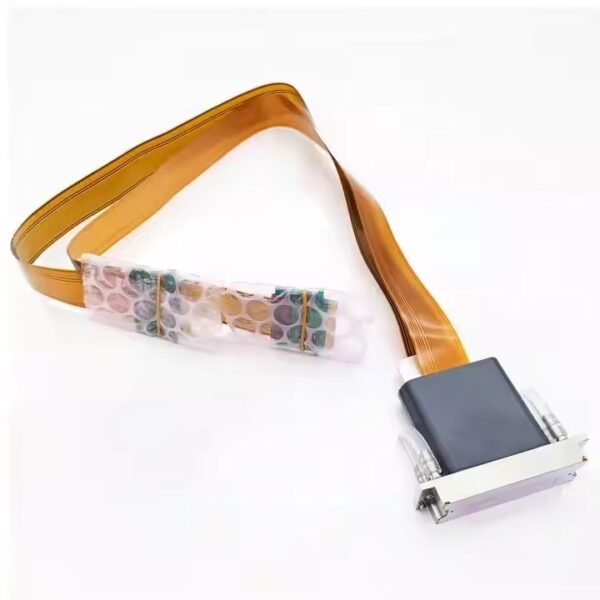

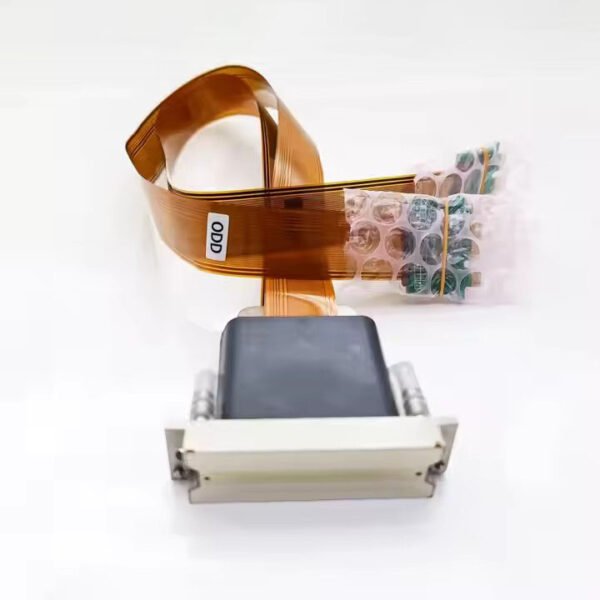

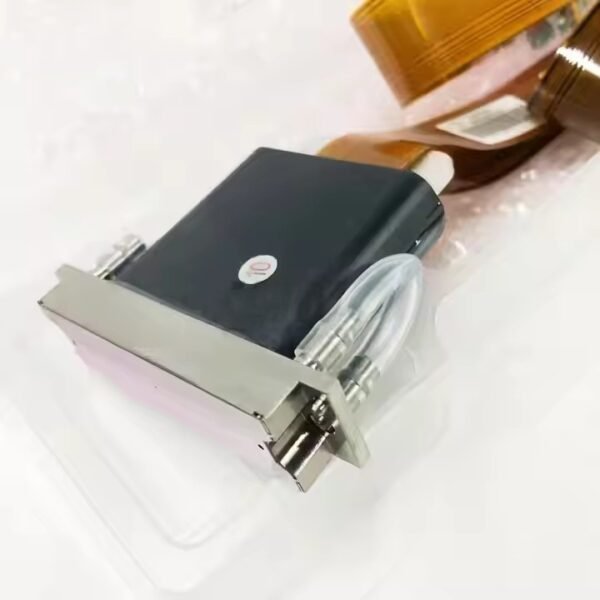

Ricoh GEN4 MH2420 Printhead

The Ricoh GEN4 MH2420 printhead is an industrial printhead designed for compatible printing systems. Featuring 512 nozzles and variable grayscale drop sizes from 7 to 35 pl, it supports controlled ink deposition for a range of industrial printing applications.

The Ricoh MH2420 supports a maximum drive frequency of 30 kHz and is compatible with aqueous, solvent, and UV-curable inks. Its integrated heater and thermistor help regulate printhead temperature during operation. Before ordering, confirm the required part number and printer configuration.

Item Details

Specification	Detail
Brand	Ricoh
Model	MH2420
Generation	Ricoh GEN4
Ricoh Part Numbers	N220792W / N220792S / N220792U / N220792E
Total Nozzles	512 (2 rows × 256 nozzles)
Native Resolution	150 dpi per row / 300 dpi (2 rows)
Drop Size	Variable grayscale drops, 7–35 pl
Maximum Drive Frequency	30 kHz
Ink Compatibility	Aqueous, solvent, and UV-curable inks
Temperature Control	Integrated heater with thermistor
Cable Length	44 cm, including connector
Ink Inlet	Removable hose barb; compatible with O-ring-sealed inlet
Condition	100% genuine original Ricoh, with manufacturer warranty

Application

The Ricoh GEN4 MH2420 printhead is designed for compatible industrial printing systems using aqueous, solvent, or UV-curable inks. Its variable 7–35 pl grayscale drop sizes support printing applications that require controlled ink placement and different levels of image detail.

The integrated heater and thermistor help regulate printhead temperature during operation. Confirm that your printer and ink delivery system support the MH2420 before installation.

Condition

This Ricoh GEN4 MH2420 printhead is 100% genuine original Ricoh and comes with a manufacturer warranty. Please confirm the warranty coverage and applicable terms with Glowyprint before purchasing.

Compatibility

The Ricoh MH2420 belongs to the GEN4 printhead generation and is associated with part numbers N220792W, N220792S, N220792U, and N220792E. These part numbers should be checked against your existing printhead and printer documentation before ordering.

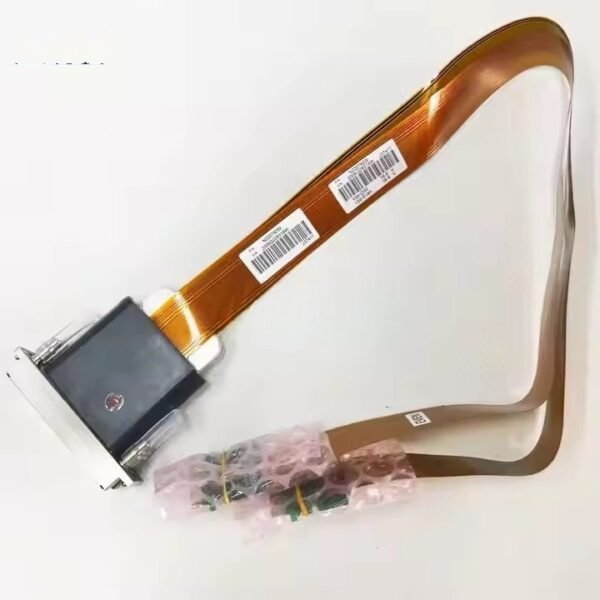

This model features a 44 cm cable, including the connector. The supplied specifications also identify a removable hose-barb ink inlet compatible with an O-ring-sealed inlet. Check the cable length, connector, ink inlet, drive settings, and ink type to confirm compatibility with your printer.
