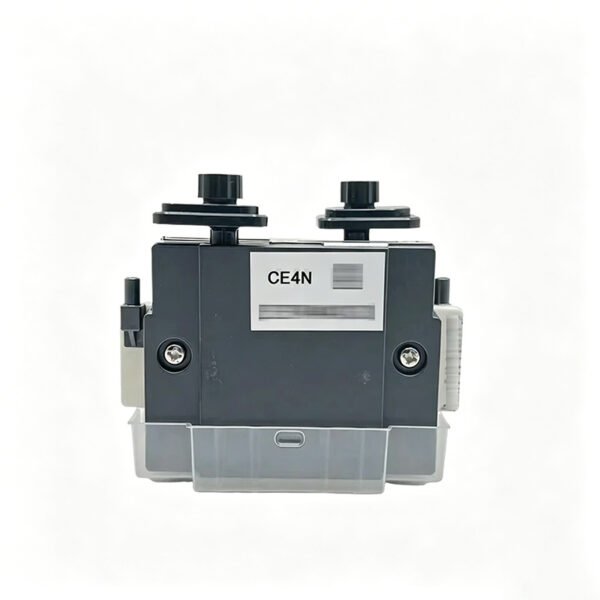

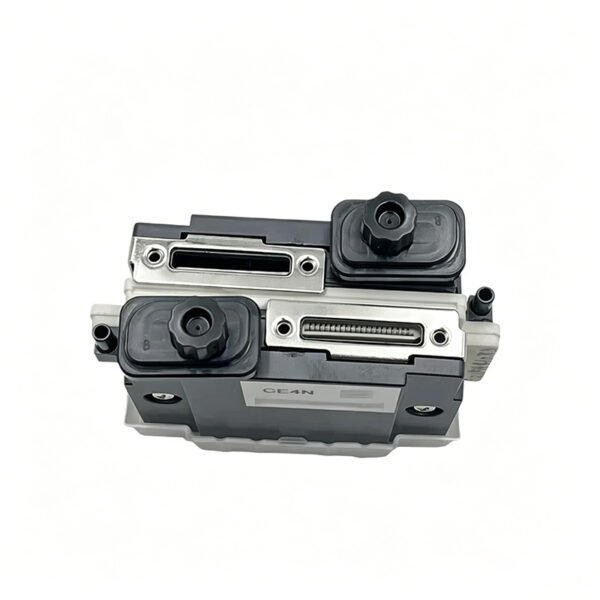

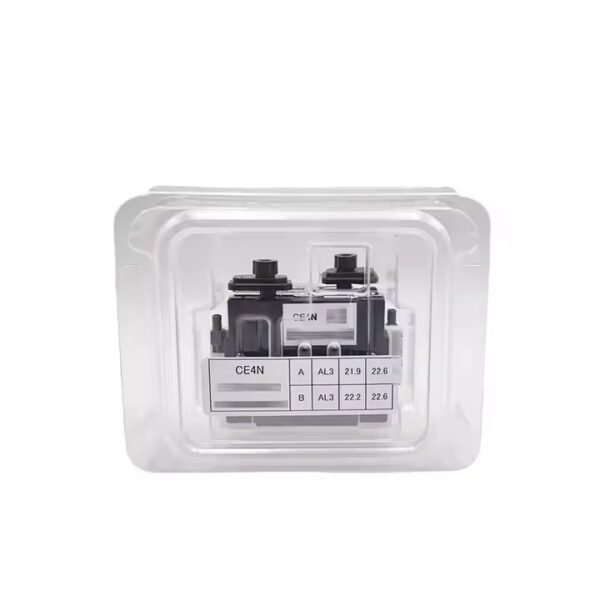

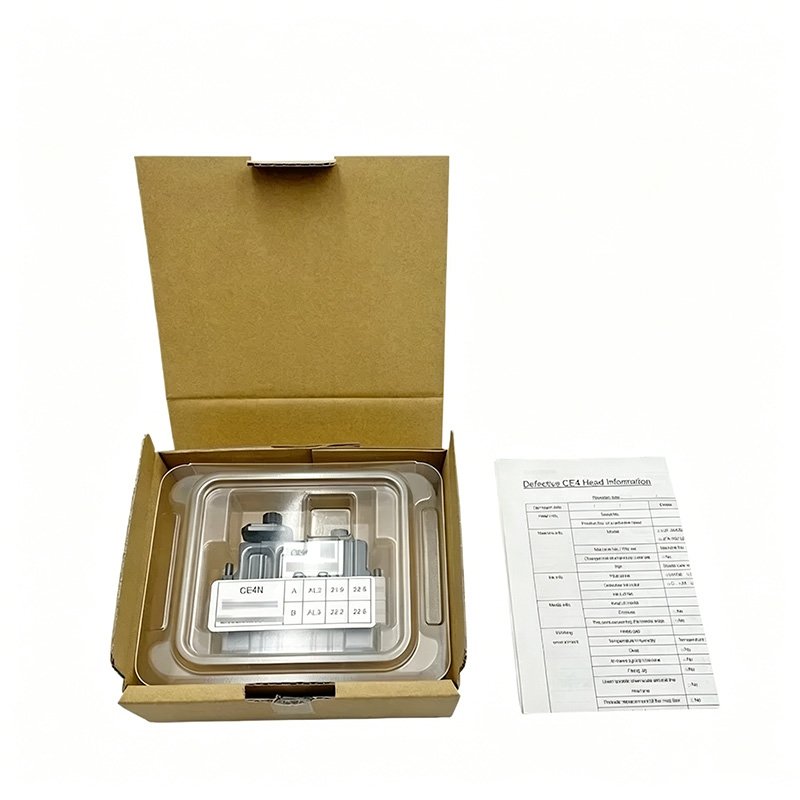

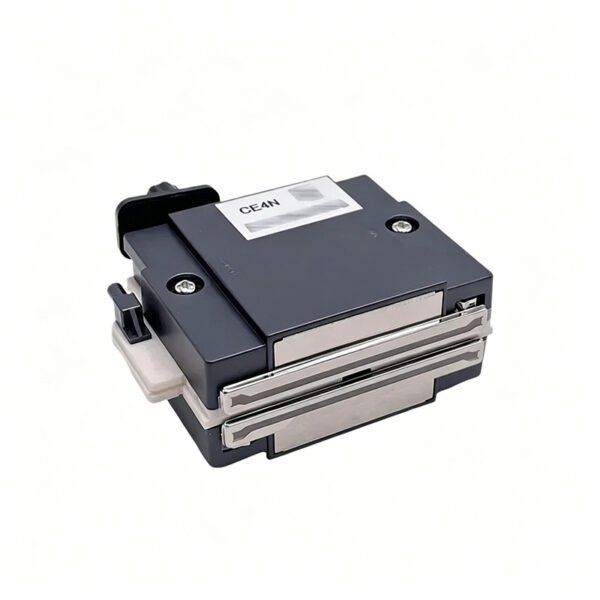

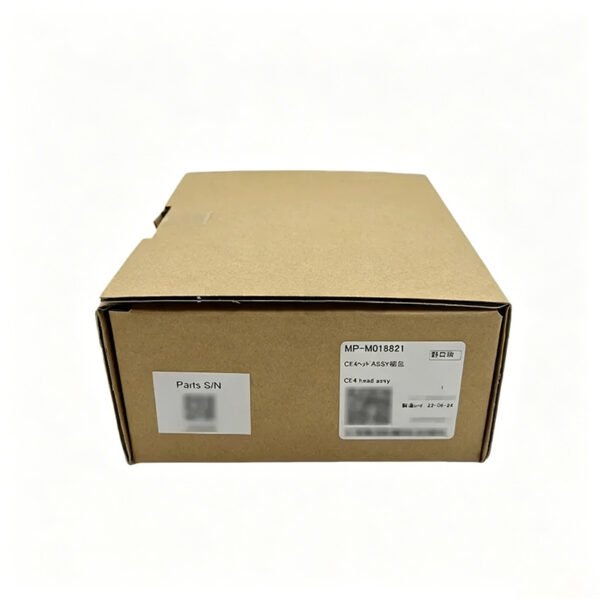

Mimaki CE4 M018821 Printhead for UJF JFX UJV Printers

Applicable Printers

The original Mimaki M018821 CE4 printhead is compatible with selected Mimaki UJV, JFX, and UJF-706 series printers. It replaces the earlier part numbers M008386 and KX-CE308644CS-CE4. The metal bracket is not included and can be reused from the existing printhead. Replacing the printhead cables during installation is also recommended.

Product Specifications

• Brand: Mimaki
• Technology: Multi-drop grayscale micro-piezo
• Grayscale Levels: 16
• Active Nozzles: 318
• Print Swathe Width: 53.6 mm
• Nozzle Pitch: 169 μm
• Native Resolution: 150 dpi
• Printhead Weight: 148 g
• Dimensions: 85 × 70 × 23 mm
• Drop Volume: 6–90 pl
• Typical Firing Frequency: 2.8–28 kHz
• Ink Compatibility: Oil-based pigment ink and UV-curable pigment ink
• Warranty: Manufacturer warranty
• Country of Origin: Japan

Printer Compatibility
