Kyocera KJ4B-EX600-RC Printhead for Water-Based Ink Printers
The Kyocera KJ4B-EX600-RC printhead is designed for compatible industrial inkjet printing systems using water-based ink. It features 2,656 nozzles, including 2,560 effective nozzles, and a resolution of 600 × 600 dpi. With a maximum drive frequency of 40 kHz, print speeds of up to 101.6 m/min, and variable drop volumes from 5 to 14 pL, it supports high-speed industrial printing. Nozzle recirculation helps maintain ink circulation within the printhead. Contact Glowyprint to confirm compatibility before ordering.

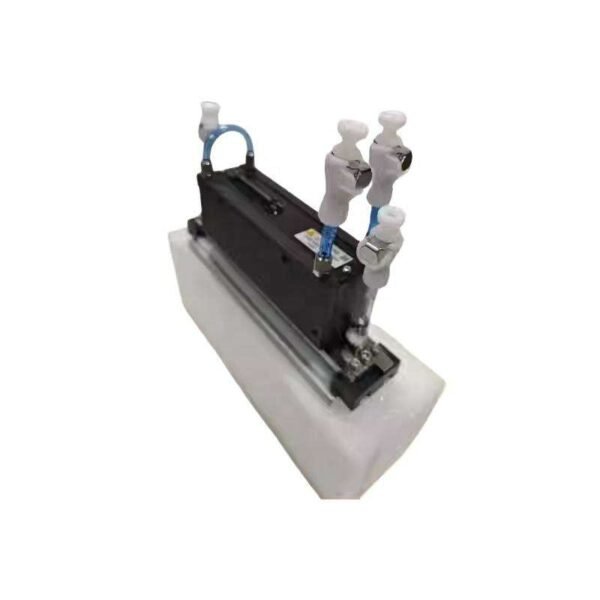

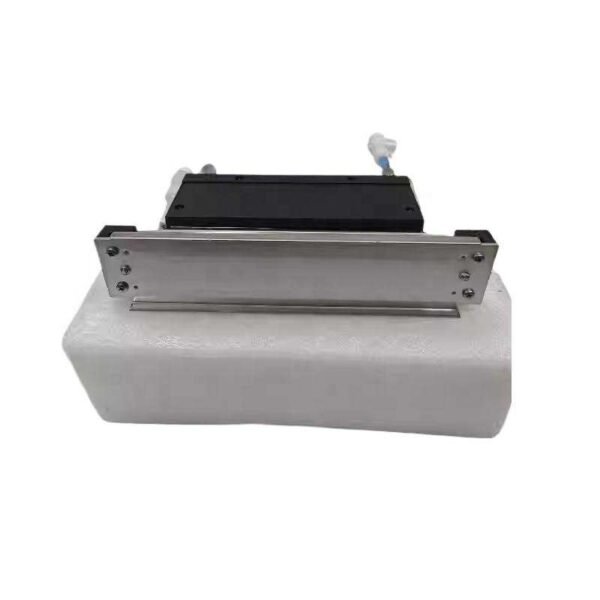

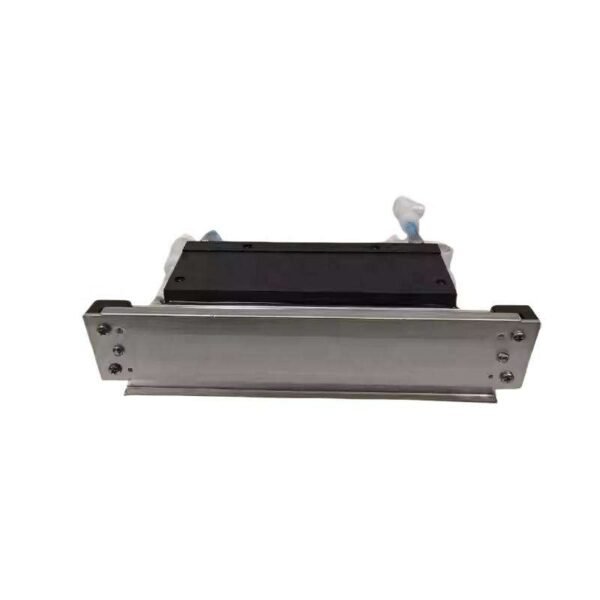

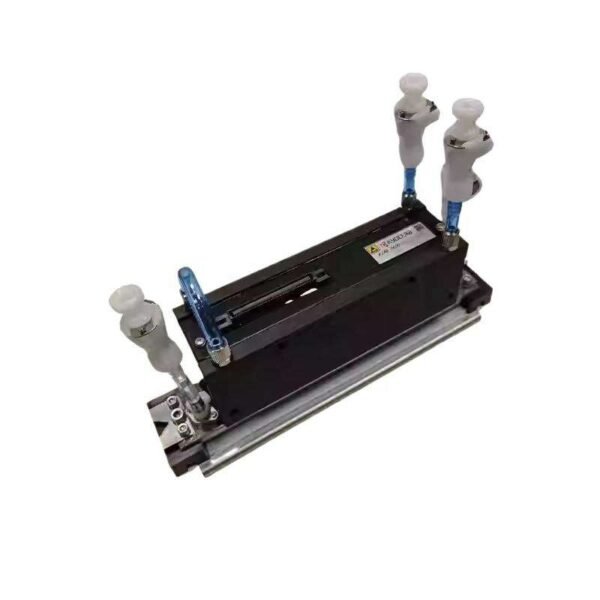

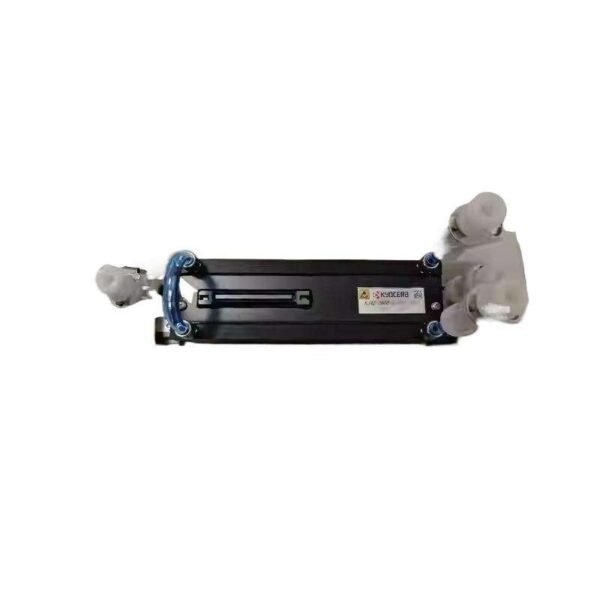

Kyocera KJ4B-EX600-RC Printhead
The Kyocera KJ4B-EX600-RC printhead is designed for compatible industrial inkjet printing systems that use water-based ink. With a resolution of 600 × 600 dpi and 2,656 nozzles, including 2,560 effective nozzles, this printhead supports precise ink deposition for industrial printing applications.
Operating at a maximum drive frequency of 40 kHz, the Kyocera KJ4B-EX600-RC supports printing speeds of up to 101.6 m/min. Its variable drop volume ranges from 5 to 14 pL, providing flexibility for different printing requirements. The printhead also features nozzle recirculation, which supports continuous ink circulation within the printhead.
With an effective print width of 108.33 mm and a recommended ink viscosity of 5.0–6.0 mPa·s, the Kyocera KJ4B-EX600-RC is intended for compatible water-based ink systems. Confirm the printer configuration and ink specifications before ordering.
Item Details
| Brand | Kyocera |
|---|---|
| Model | KJ4B-EX600-RC |
| Ink Type | Water-based ink |
| Resolution | 600 × 600 dpi |
| Number of Nozzles | 2,656 total (2,560 effective) |
| Effective Print Width | 108.33 mm |
| Maximum Drive Frequency | 40 kHz |
| Maximum Print Speed | Up to 101.6 m/min |
| Drop Volume | 5–14 pL |
| Recommended Ink Viscosity | 5.0–6.0 mPa·s |
| Nozzle Recirculation | Yes |
| Dimensions (W × L × H) | 200 × 41.6 × 68.2 mm |
| Country of Origin | Japan |
Application
The Kyocera KJ4B-EX600-RC printhead is intended for compatible industrial inkjet printing systems that use water-based ink. Its 600 × 600 dpi resolution, high drive frequency, and maximum printing speed of 101.6 m/min make it suitable for industrial applications requiring high-speed inkjet printing. The nozzle recirculation feature supports ink circulation within the printhead. Confirm that the printing system and ink meet the specified requirements before installation.
Condition
Please confirm the product’s condition and supply details with Glowyprint before placing your order. Check the model number on the product label or original packaging to ensure that it matches the KJ4B-EX600-RC specification.
Compatibility
Compatibility depends on the exact printer model, printhead interface, ink delivery system, and operating requirements. The Kyocera KJ4B-EX600-RC is specified for water-based ink with a recommended viscosity of 5.0–6.0 mPa·s. Before ordering, provide your printer brand and model to Glowyprint for a compatibility check. Do not assume that other Kyocera KJ4B series printheads are interchangeable without confirmation.
