Kyocera KJ4B-0600-020SQ-TZC1 Printhead for Water-Based Ink Printers
The Kyocera KJ4B-0600-020SQ-TZC1 printhead is intended for compatible industrial inkjet printing systems using water-based (aqueous) ink. It features a 600 × 600 dpi resolution, 2,656 nozzles (2,560 effective), and an effective print width of 108.33 mm. With a maximum drive frequency of 30 kHz and variable drop volumes from 5 to 16 pL, this printhead supports printing speeds of up to 76.2 m/min. Contact Glowyprint to confirm the exact model and printer compatibility before ordering.

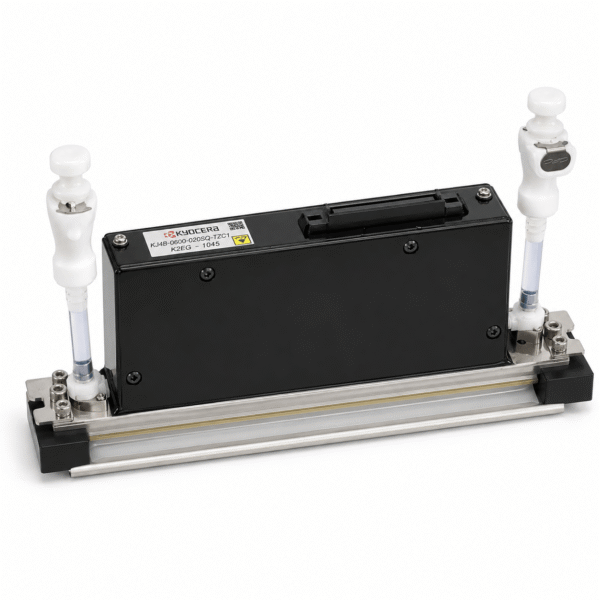

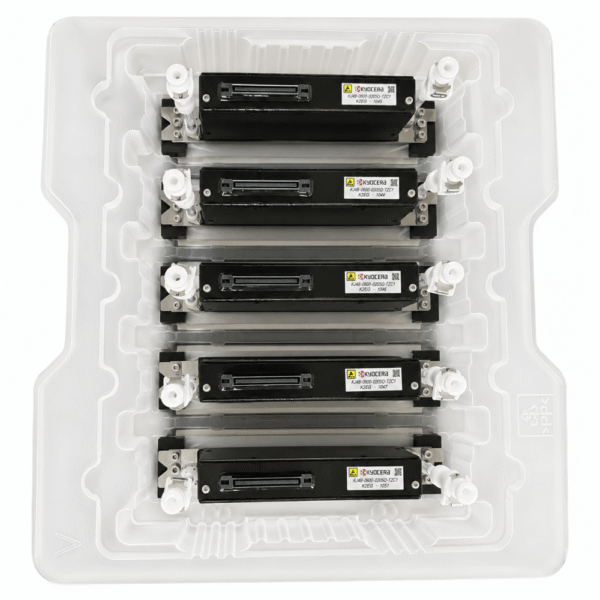

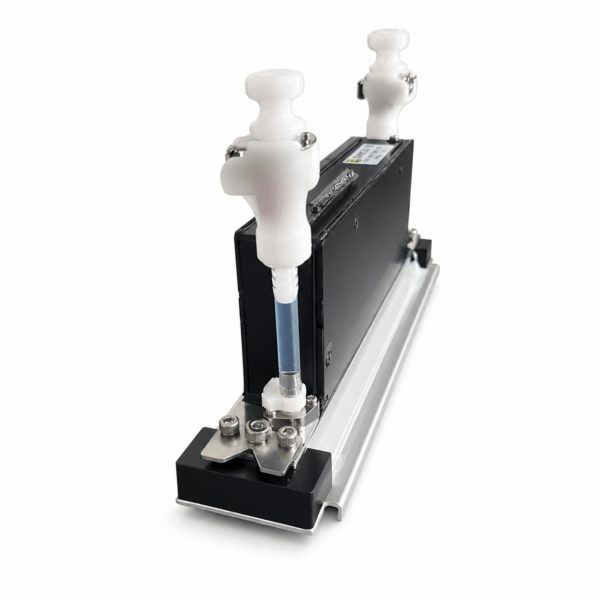

Kyocera KJ4B-0600-020SQ-TZC1 Printhead
The Kyocera KJ4B-0600-020SQ-TZC1 printhead is intended for compatible industrial inkjet printing systems that use water-based (aqueous) ink. With a resolution of 600 × 600 dpi and 2,656 nozzles, including 2,560 effective nozzles, this printhead is designed for precise ink deposition in industrial printing applications.
The printhead features an effective print width of 108.33 mm and a maximum drive frequency of 30 kHz. Its variable drop volume ranges from 5 to 16 pL, while the maximum printing speed reaches 76.2 m/min under suitable operating conditions. For optimal system integration, the ink viscosity should be within the recommended range of 5.0 to 6.0 mPa·s.
Item Details
| Brand | Kyocera |
|---|---|
| Model | KJ4B-0600-020SQ-TZC1 (model listed in the supplied specifications; confirm the suffix before ordering) |
| Ink Type | Water-based (aqueous) ink |
| Resolution | 600 × 600 dpi |
| Number of Nozzles | 2,656 total (2,560 effective) |
| Effective Print Width | 108.33 mm |
| Maximum Drive Frequency | 30 kHz |
| Maximum Print Speed | Up to 76.2 m/min |
| Drop Volume | 5–16 pL |
| Recommended Ink Viscosity | 5.0–6.0 mPa·s |
| Dimensions | 200 × 42.5 × 68.1 mm |
| Country of Origin | Japan |
Application
The Kyocera KJ4B-0600 series printhead is intended for compatible industrial inkjet printing systems that use water-based (aqueous) inks. Its 600 × 600 dpi resolution, effective nozzle count of 2,560, and maximum printing speed of 76.2 m/min make it a potential option for industrial applications requiring high-speed inkjet printing. Confirm that the printer and ink system meet the specified operating requirements before installation.
Condition
Please contact Glowyprint to confirm the product’s condition and supply details before placing your order. Verify the complete model number on the product label or original packaging to ensure that it matches your requirements.
Compatibility
Compatibility depends on the exact printhead model, printer configuration, electrical interface, ink delivery system, and ink specifications. This printhead is specified for water-based (aqueous) ink, with a recommended ink viscosity of 5.0–6.0 mPa·s. Before ordering, provide your printer brand and model to Glowyprint for a compatibility check. Do not assume that printheads with similar KJ4B model numbers or different suffixes are interchangeable.
Why Buy from Glowyprint
✓ Reliable
— 100% original new
— 100% original new
✓ Professional
— Specialized in printer parts & supplies
— Specialized in printer parts & supplies
✓ In stock in Guangzhou, China
— Same day shipping before 6pm
— Same day shipping before 6pm
✓ Competitive
— Direct sourcing and competitive pricing
— Direct sourcing and competitive pricing
✓ Technical Support
— We help confirm product specifications and compatibility with your printer before you order
— We help confirm product specifications and compatibility with your printer before you order

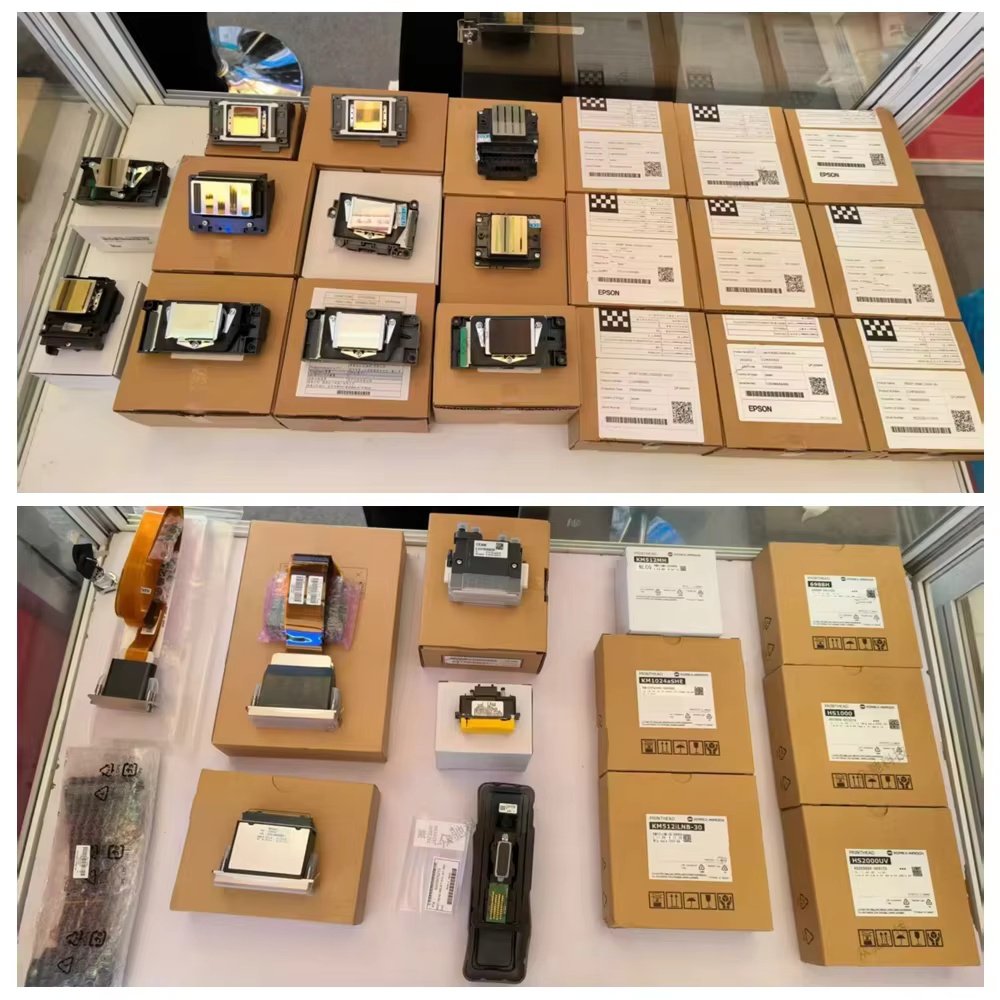

Explore our full range of printer parts, printheads, and printhead assemblies stocked by Glowyprint.
