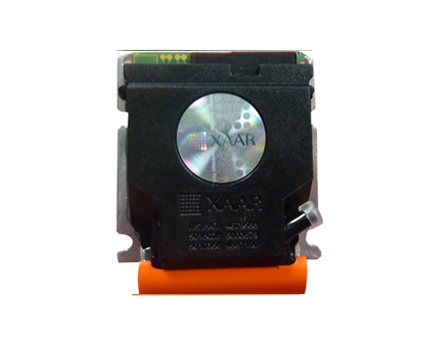

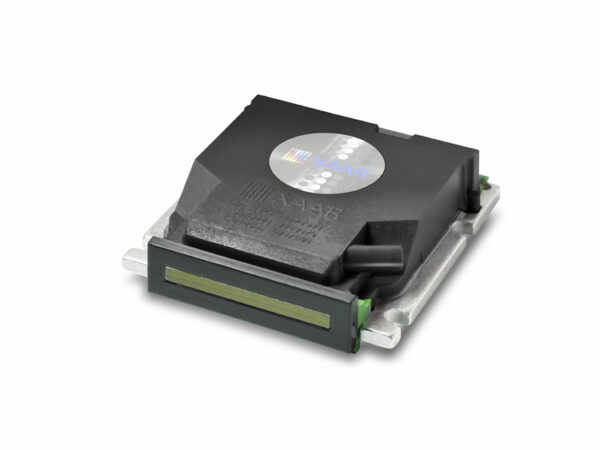

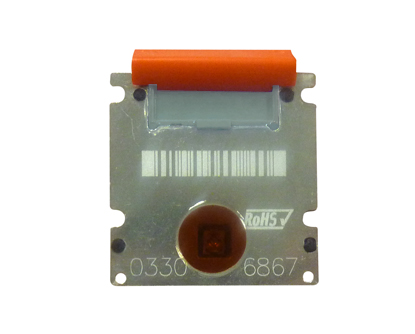

Xaar 128/40W Printhead – XP12800009

Description

Compatible with a wide range of oil-based, solvent and dye sublimation inks, the Xaar 128 is extensively used across the coding & marking and wide-format graphics industries. It’s a consistent and highly flexible inkjet solution for producing eye-catching marketing media. This is original xaar 128 360dpi 40pl print head. The ink connections on the Xaar 128 and Xaar Irix are 3.1 mm in diameter, therefore the recommendation for the tubing is for 3mm ID tubing. The exact choice of tubing would depend upon the inks you are using.

This Xaar 128/40W replaces Xaar 126/35 & Xaar 126/50 printheads that were discontinued by Xaar.

The following items are expressly excluded from warranty coverage:

defects related, in any way, to the use of non-original inks
clogged, missing or deviated nozzles
defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
defects related to improper loading of media
all other defects, failures or damage not considered manufacturing defects
defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
defects that are merely cosmetic in nature.

Product Specifications

Tag: Light grey tag
Active nozzles: 128
Print swathe width: 17.4 mm
Nozzle pitch: 137.1 μm
Nozzle density: 185 npi
Drop velocity: 6 m/s
Printhead weight: 15.5 g
Dimensions: 37.2 x 40.8 x 11.3 mm
Drop volume: 40 pl
Typical firing frequency: 8.3 kHz
Xaar 128 Techical Datasheet here

DIGIPRINT SUPPLIES is Xaar Authorised Dealer. Any Xaar Product we sell has a serial number and a 12 months manufacturer warranty. Country of origin : United Kingdom

We recommend to change the head cables when installing a new printhead.
