Xerox W-Series Mono Printhead UV (64kHz)
The W-Series Mono Printhead UV (64kHz) enhances jetting performance across a wide array of materials used in industrial applications.
SKU: 033K08720
Manufacturer part number: 033K08720
Description
The W-Series Mono Printhead UV (64kHz) enhances jetting performance across a wide array of materials used in industrial applications.
With its 5,544 jets, this printhead combines high resolution, increased operating frequencies and a generous print width to maximize quality and efficiency for Aqueous applications.
The following items are expressly excluded from warranty coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Specifications:
- Ink compatibility : UV inks
- Number of addressable jets: 5544

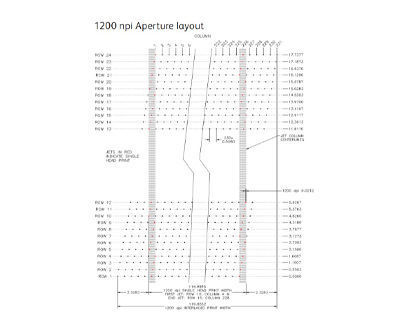

- Single Color Nozzle Spacing: 21.2 (1200) microns (npi)
- Rows of nozzles: 24
- Columns of Nozzles: 231
- Effective Print Width (Single): 115.0 mm
- Total Print Width (Outside) 119.6 mm
- Drop size: 4 pl
- Jet Straightness, 1 Sigma: ≤5 mrad
- Normal drop velocity: 10 m/s
- Operating temperature: room to 60°C (140 F°)
- Fluid viscosity: 3 to cP
- Fluid surface tension: 24 to 50 dyne/cm
- Maximum operating frequency: 64 kHz
- Dry weight: 386 (13.6oz) grams
- Wet Weights: 412 (14.5 oz) grams
- Manufacturing country: United States
We recommend to change the head cables when installing a new printhead.
Product specifications
| Type | Printheads |
