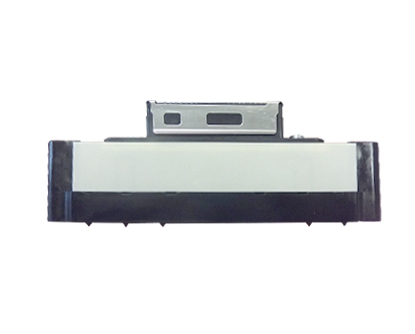

VJ-1604 Print Head Assy – DF-49684

Description

This VJ-1604 printhead is suitable for Mutoh ValueJet printer series printers. This original Mutoh printhead is solvent based and has a 24 digit head ID. Please refer to DF-49029 for the 40 digit head ID water based Mutoh printhead.

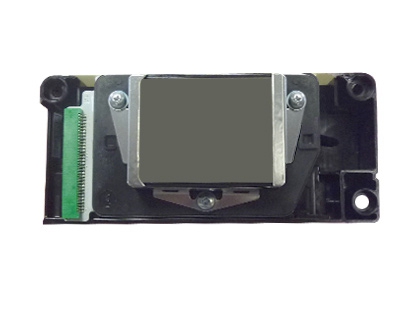

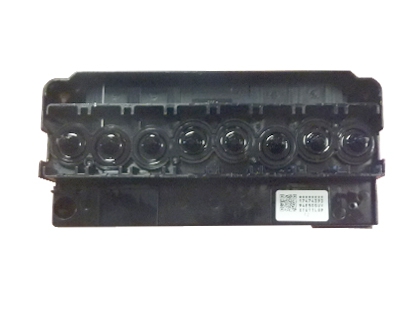

The VJ-1604 printhead has a native resolution of 1440dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line.

The VJ-1604 printhead is either used in 4-colours (2 channels per colour) and has a minimum, variable droplet size of 1.5 pico litre (max. droplet size is 21 pico litre). The typical firing frequency for this print head is 8 kHz.

This generation of printheads allows fast speed, high resolution printing with eco-solvent and mild solvent inks. This VJ-1604 original printhead is delivered in a sealed Mutoh package. Mutoh part number for this print head is DF-49684.

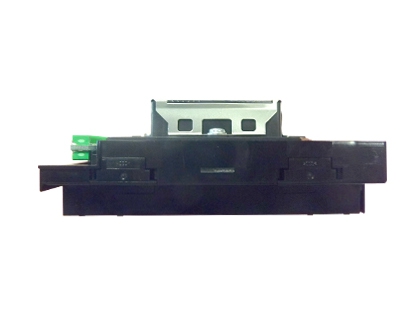

This green connector printhead replaces the black connector printhead DF-49029 for Drafstation printers. It is 100% compatible and recommended by Mutoh. The DF-49029 was discontinued and is not available anymore.

DF-49684 and DH-40990 printheads are compatible with VJ-1604X printer models.

We recommend to change the head cables when installing a new printhead.

The following items are expressly excluded from warranty coverage:

defects related, in any way, to the use of non-original inks
clogged, missing or deviated nozzles
defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
defects related to improper loading of media
all other defects, failures or damage not considered manufacturing defects
defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
defects that are merely cosmetic in nature.
