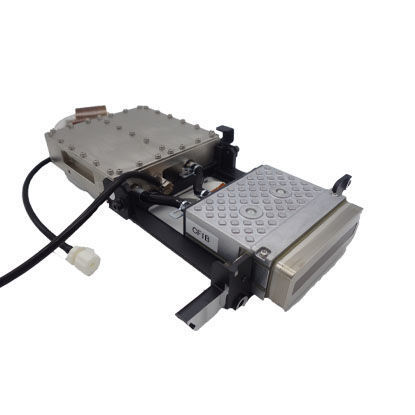

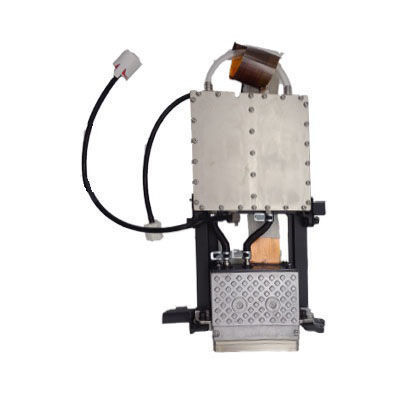

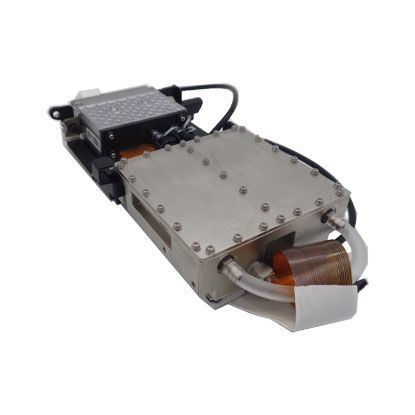

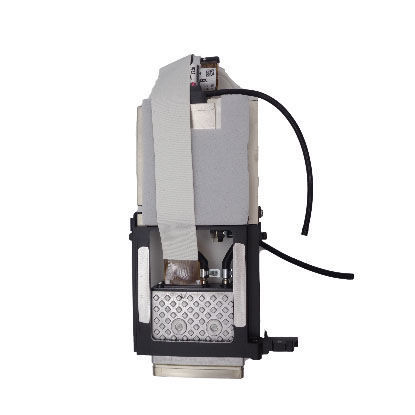

UJF-7151 Plus Head Assembly – M017429 / MP-M025074

This head assembly is suitable for Mimaki UJF-7151 Plus printers. This is the original Mimaki part (number M017429 replaced by MP-M025074). This head assembly includes brackets, tubes, damper and subtank. We recommend to change the head cables when installing a new printhead.

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature

Specifications

• Print Method: On-Demand piezo technology
• Ink Re-circulation Structure: Ink re-circulation through all channels
• Print Width: 53.7mm
• Nozzles: 636
• Nozzle Resolution: 300npi
• Number of Lows: 2
• Nozzle Spacing (Row to row distance): 4.64mm
• Grayscale Level: 4 levels/0,5,6,7drops
• Drop Volume: 57~80pL
• Frequency: 4.8kHz/7drops
• Power Supply Voltage for Driving the Head: 14~31V
• Power Supply Voltage for Driving Circuit: 5V, 39V
• Ink Type: UV-curing
• Size, Weight: 94.1mm(W)×26mm(D)×79mm(H), 161g
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
