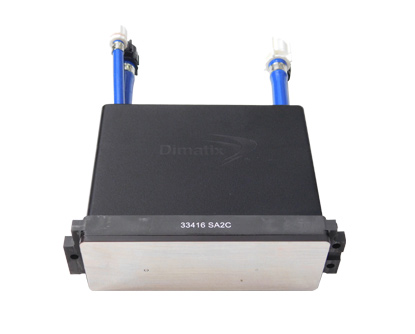

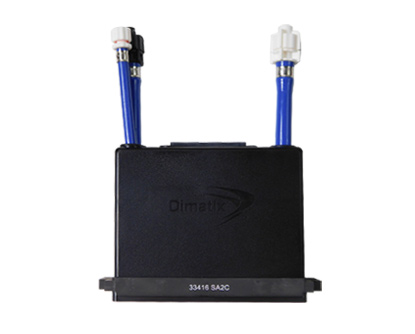

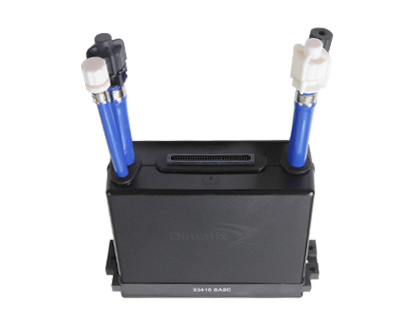

StarFire™ SG1024/SA-2C Printhead

The StarFire™ SG1024/SA-2C is a compact, self-contained unit built to withstand demanding industrial textile and other applications. It uses field proven materials to deliver consistent output over a long service life with continuous ink recirculation and two-color operation at 200 dots-per-inch. Equipped with a single replaceable metal nozzle plate that is designed to withstand abrasion and resist damage. The unit is compatible with solvent, UV-curable and aqueous ink formulations.

Each SG1024/SA-2C printhead has two separate ink paths each with 512 independent channels arranged in 4 rows in a single nozzle plate for resolutions up to 200 dpi. All 1024 nozzles can be fired. We recommend to change the head cables when installing a new printhead.

The Starfire SA-2C can be the replacement for Starfire SA2N which is discontinued.

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Features

• Two color operation
• Robust and repairable construction
• Drop size range: 12pl (50 Hz) – 33pl (18Hz)
• 1024 individually addressable jets
• Incorporate VersaDrop™ binary and grayscale jetting
• Continuous ink recirculation with RediJet™
• Removable/replaceable collar mounted, coated metal nozzle plate
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
