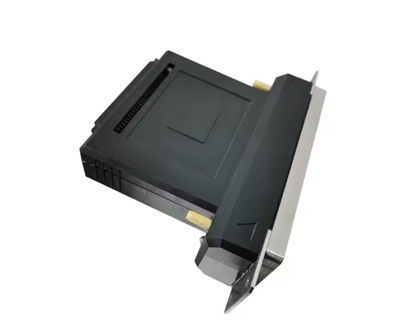

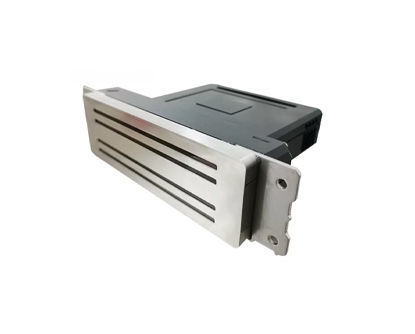

Seiko SPT RC1536L 25-225pl UV Printhead – ICA1536T0L

This printhead is suitable for for ceramic, corrugated cardboard, textiles, inkjet printers.

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Product Specifications

• Drop Volume Range: 25 to 225 pL
• Maximlum Productivity at 10 Drops:  2.477 µL/sec
• Discharge at 25M/min : 85 g/m²
• Possible print directions: Vertical and Horizontal
• Number of Grey Levels: up to 10
• Jetting Frequency: up to 37 kHz
• Native Nozzle Resolution: 360 npi
• Active Nozzles: 1536 at 4 rows
• Ink Inlets / Ink Outlets : 1/1
• Ink Compatibility: Oil and UV inks
• Print width: 108.3 mm
• Weight: > 0.7 kg
• Dimensions: 180,0 x 47.6 x 123.3 mm
• Driving Interface: Parallel interface
• This printhead carries a manufacturer warranty.
• Country of origin : Japan

It is highly recommended to replace the head cables together with a new printhead.
