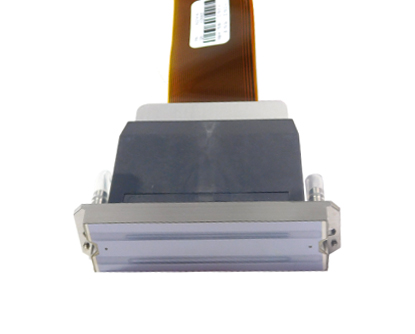

Ricoh GEN5 UV Printhead (Cable: 500mm) – MH5420

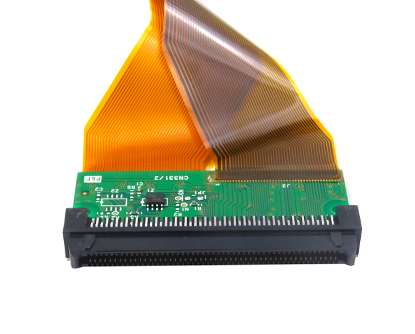

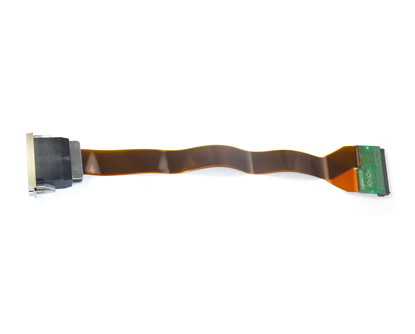

This GEN5 UV printhead is suitable for a range of UV and solvent printers. It supports up to two colours and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty. This Ricoh GEN5 is 500mm long in total (head body + cable + connectors). Head cable is 400mm long.

This head is also known as N221414R

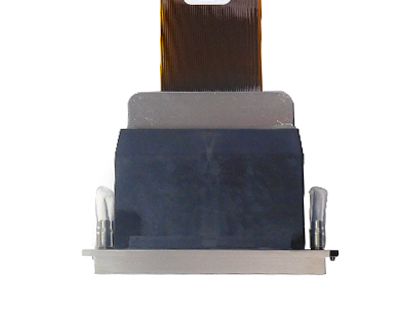

This printhead comes with the hose barbs which can easily be removed if needed.

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Product Specifications

• Dimensions: 89 x 25 x 69 mm (excluding cables)
• Head materials: SST, Nickel alloy and Epoxy Adhesive
• Nozzle plate surface: Coated SST
• Number of nozzles: 4 x 320 nozzles
• Nozzle spacing: 0.1693 mm
• Nozzle density: up to 600 npi
• Piezo type: D33 Stacked PZT
• Temperature control: Integrated Heater and Thermistor
• Operator temperature range: Up to 80° C
• Native drop volume: 7 pl
• Drop volume range: 7 – 35 pl
• Drop velocity: 7 m/s
• Jetting frequency: Up to 60 kHZ
• Ink compatibility: UV Inks
• Life: 100 billion actuations per nozzle
• Max.number of color inks: 2 colors
• Number of ink ports: 2 × dual ports
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
