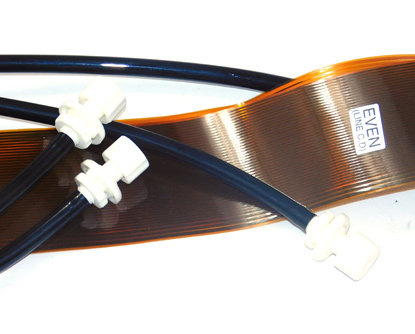

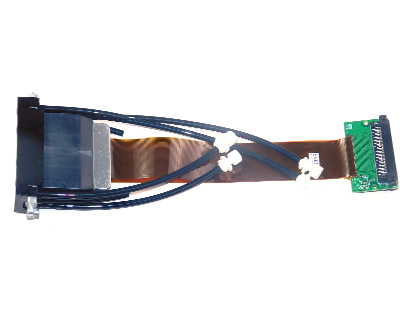

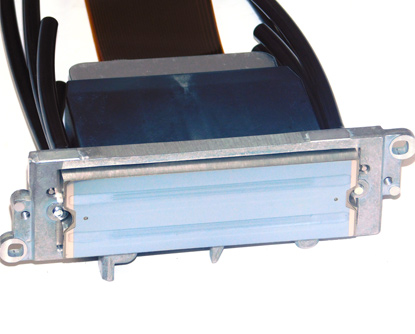

JV400 GEN5 Head J SUV – M014400

This GEN5 (MH5420/5440) printhead is suitable for Mimaki JV400-130SUV & JV400-160SUV printers. This is the original Mimaki part (number M014400).

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Product Specifications

• Dimensions: 89 x 25 x 69 mm (excluding cables)
• Head materials: SST, Nickel alloy and Epoxy Adhesive
• Nozzle plate surface: Coated SST
• Number of nozzles: 4 x 320 nozzles
• Nozzle spacing: 0.1693 mm
• Nozzle density: up to 600 npi
• Piezo yype: D33 Stacked PZT
• Temperature control: Integrated Heater and Thermistor
• Operator temperature range: Up to 80° C
• Native drop volume: 7 pl
• Drop volume range: 7 – 35 pl
• Drop velocity: 7 m/s
• Jetting frequency: Up to 60 kHZ
• Life: 100 billion actuations per nozzle
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
