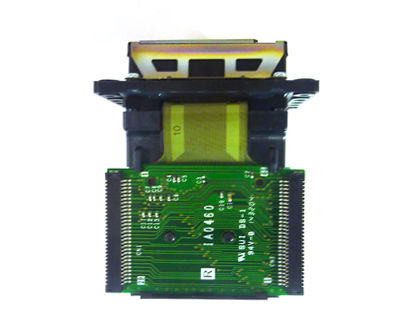

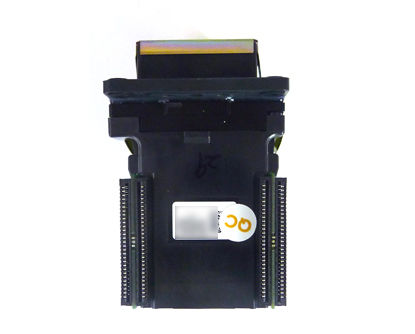

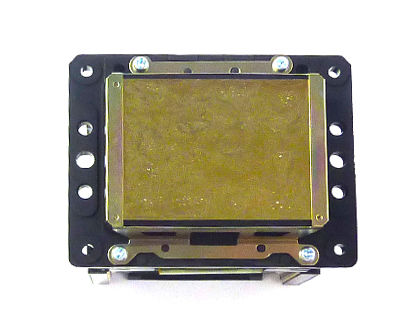

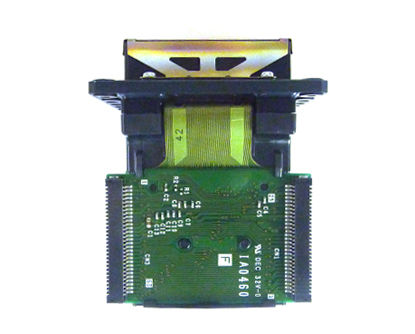

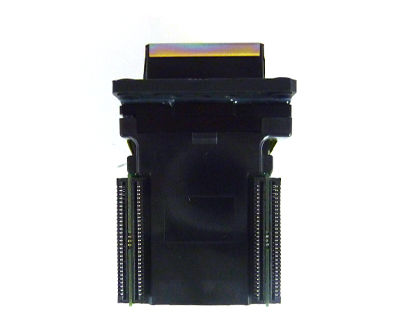

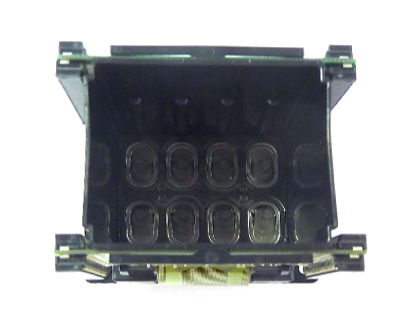

Epson L1440-U2 printhead

The Epson FA45002 printhead developed with MACH technology provides high productivity and high image quality with high-density (300npi/2 rows). This printhead is suitable for UV and Eco-solvent inks.

We recommend to change the head cables when installing a new printhead.

Product Specifications:

• Ink type: UV / Eco Solvent
• Type: MACH (Multi Layer Actuator Head)
• Width x Depth x Height: 60.4 x 46.9 x 71.1 mm
• Weight: 97g
• Number of nozzle: 1440
• Nozzle pitch/ nozzle row: 1/180 inch
• Nozzle rows: 8 rows
• Nozzle Resolution: 180 npi/ row, 360 npi/ 2 rows
• Max. number of colours ink: 8 colours
• Effective print width: 25.4mm (1 inch)
• Droplet ejection performance:
• Binary: 10 pl at 40kHz
• 4 levels grey scale: 4.5, 10, 19pl at 20kHz
• Viscosity range: 6-8mPa·s
• Country of origin : Japan

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.
