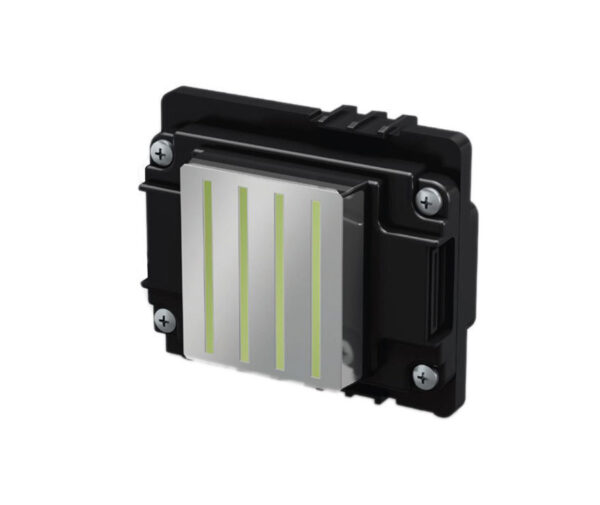

Epson I3200-U1 UV Printhead – I3200-U1 HD
The Epson I3200-U1 HD is a cost-effective 1.33 inch-wide providing higher nozzle resolution than the existing I3200-U1 with up to 1200 nozzles per inch. This printhead is suitable for UV and solvent inks.
SKU: I3200-U1HD
Manufacturer part number: I3200-U1HD
Manufacturer: Epson
Description
The Epson I3200-U1 HD is a cost-effective 1.33 inch-wide providing higher nozzle resolution than the existing I3200-U1 with up to 1200 nozzles per inch. This printhead is suitable for UV and solvent inks.
Warranty: due to the nature of DTF inks, we cannot accept returns, exchanges or refunds once the printhead has been installed. All sales are final.
We recommend to change the head cables when installing a new printhead.
Specifications :
- Ink Type : UV and solvent inks
- Type : PrecisionCore MicroTFP printhead
- Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
- Weight : 78g
- Number of nozzle : 3200
- Nozzle pitch/nozzle row : 1/300 inch
- Nozzle rows: 8 rows
- Nozzle Resolution : 300 npi/row, 600 npi/2 rows, 1200 npi/4 rows
- Max. number of colour inks : 8 colours
- Effective print width : 33.8 mm (1.33 inches)
- Droplet ejection performance :
Binary : 6 plat 43.2 kHz
3 levels grey scale : 6.3, 12.3 pl at 21.6 kHz
4 levels grey scale 3.8, 6.1, 9.4 pl at 21.6 kHz - Viscosity range : 2.2-3.8 mPa·s
- Country of origin : Japan
