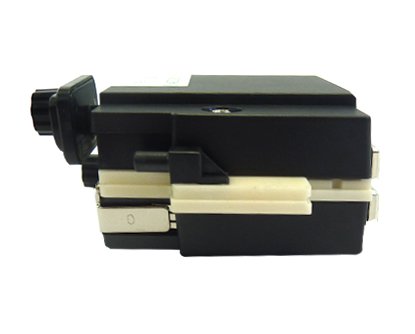

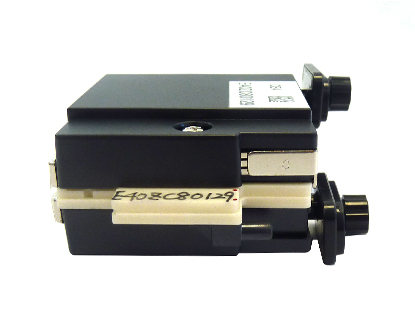

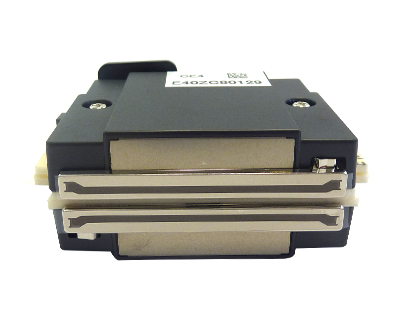

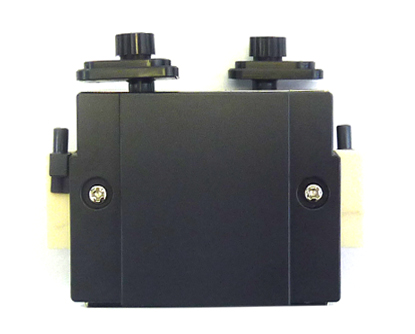

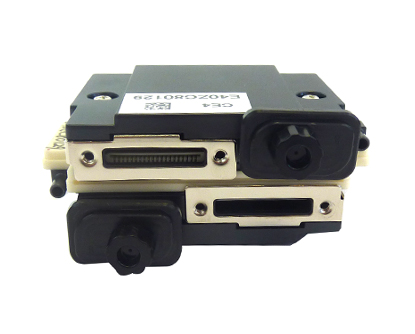

CE4 Head Assy UJF MK-II – M018821 / M008386

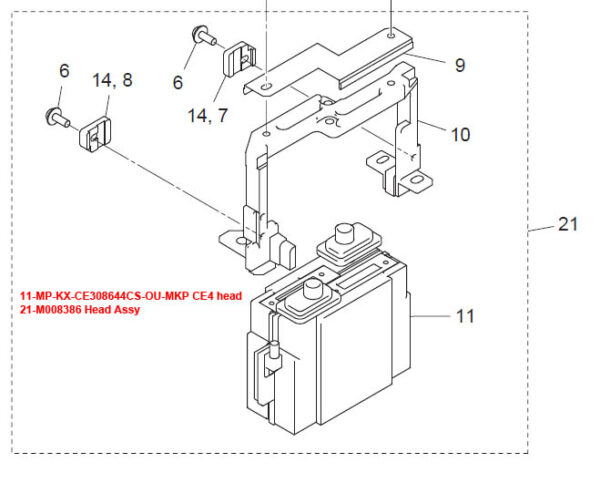

This Printhead Assy is suitable for the Mimaki UJV / JFX / UJF-706 Printers. This is the original Mimaki part (number M018821 replacing M008386 & KX-CE308644CS-CE4). This part does not include the metallic bracket that can be easily re-used from the previous head. We recommend to change the head cables when installing a new printhead.

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Product Specifications

• Technology: Multi-drop grayscale micro-piezo
• Grayscale levels: 16
• Active nozzles: 318
• Print swathe width: 53.6 mm
• Nozzle pitch: 169 μm
• Native resolution: 150 dpi
• Printhead weight: 148 g
• Dimensions: 85 x 70 x 23 mm
• Drop volume: 6 – 90 pl
• Typical firing frequency: 2.8 – 28 kHz
• Ink Compatibility: oil-based pigment ink and UV curable pigment ink
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
